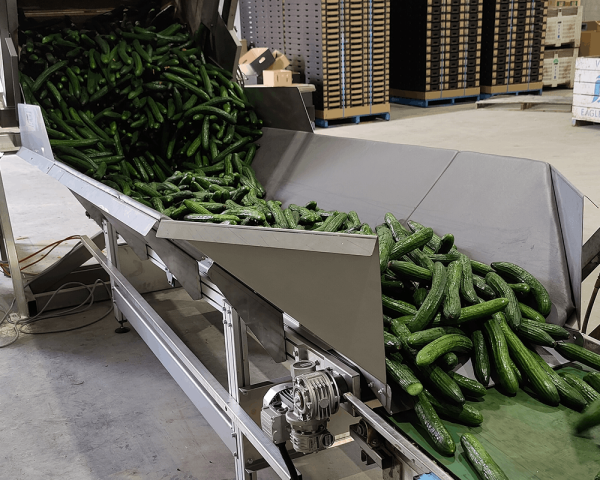

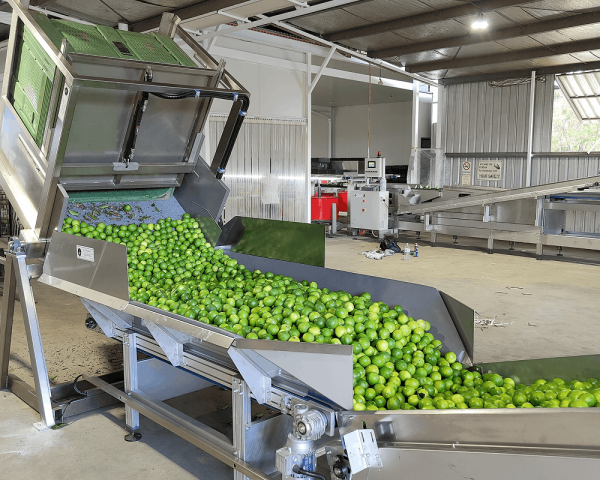

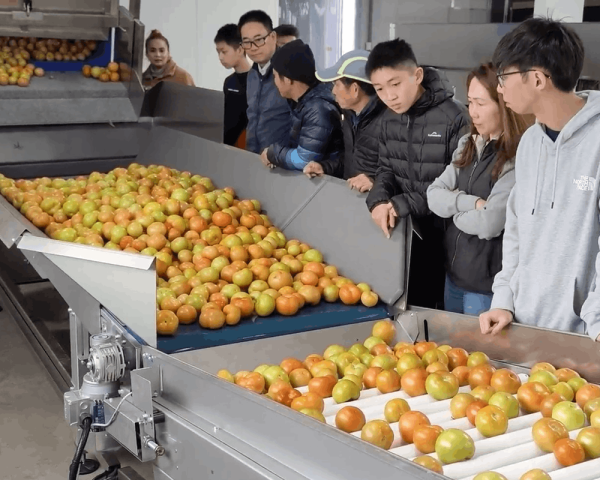

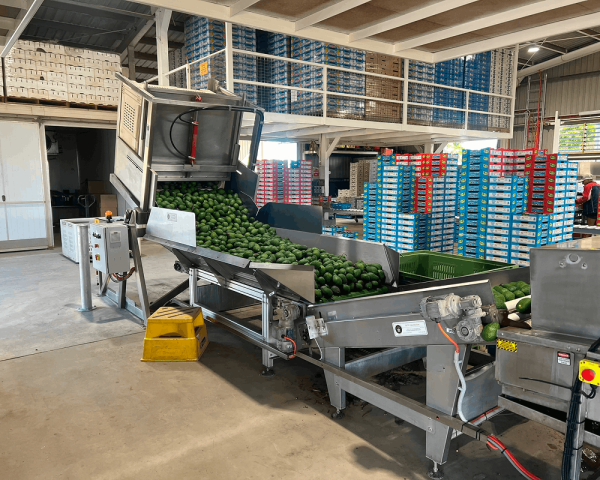

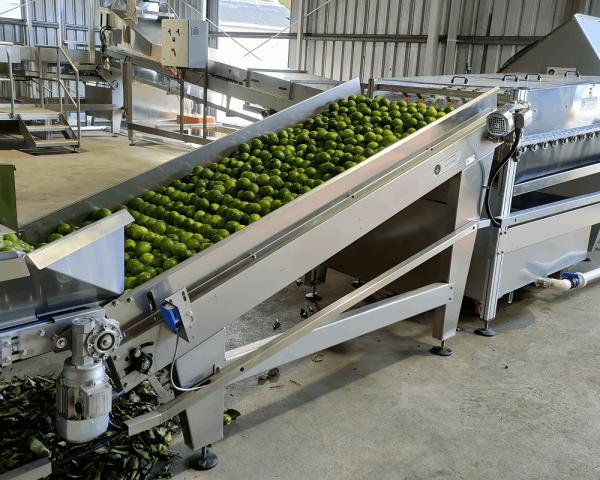

Belt Feeder & Roller Elevators
High-Efficiency Feeding for Consistent, Single-Layer Product Flow
The KW Belt Feeder & Roller Elevator is our most efficient feeding solution for applications requiring highly consistent product flow into a processing line.
The system consists of two coordinated units – a Belt Feeder and Roller Elevator.
The Belt Feeder receives and accumulates bulk produce discharged from the Bin Tipper. Sensor controls monitor product demand and regulate the transfer of produce from the accumulation area onto the Roller Elevator.
The Roller Elevator then progressively separates and elevates the produce, helping create a consistent, single-layer flow before it enters the downstream processing equipment.
This combination of accumulation, sensor-controlled feeding and product separation makes the system particularly effective for higher-throughput processing lines where consistent product presentation is important.
- Stainless steel and aluminium frame construction
- Two-stage feeding system
- Large accumulation capacity
- Sensor-controlled product transfer
- Consistent throughput into downstream equipment
- Helps create a single-layer flow of produce
- Reduces product surges and overfeeding
- Ideal for higher-throughput processing lines
- Integrates with washing, inspection, grading and packing equipment
- Standard widths of 600 mm, 900 mm and 1200 mm
Ideal for: Higher-throughput operations where maintaining a controlled and consistent single-layer product flow is critical to downstream equipment performance.
